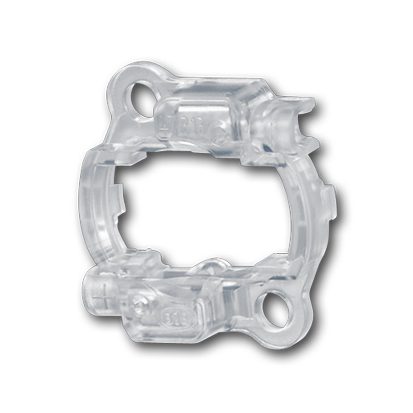

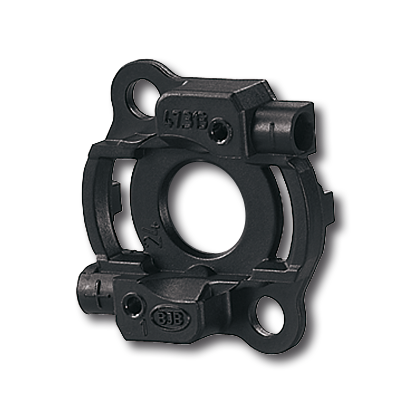

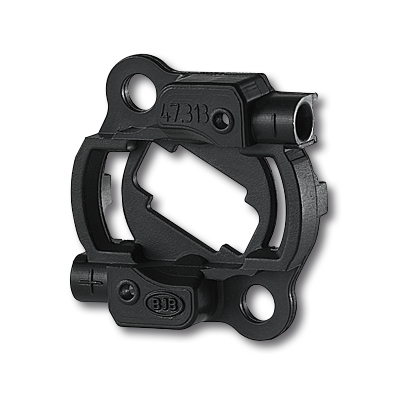

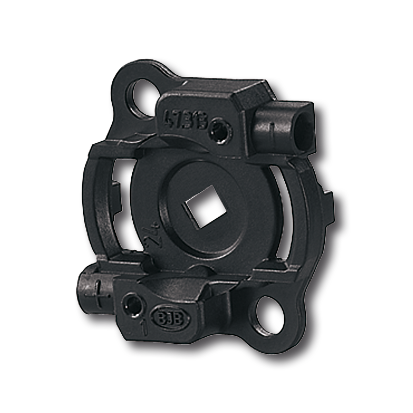

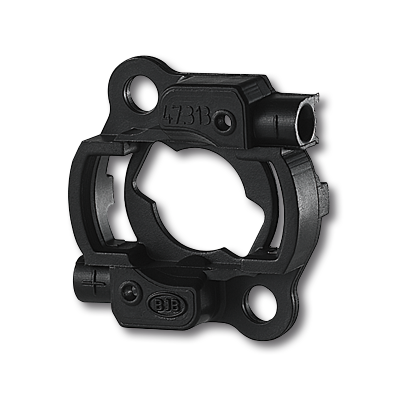

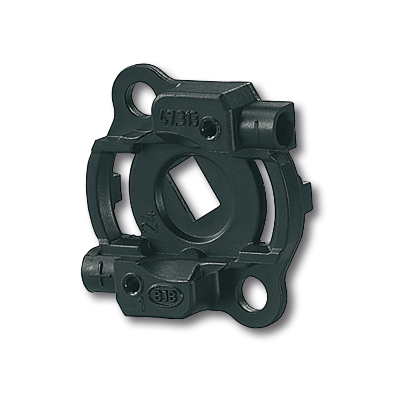

CONNECTION ELEMENTS FOR LED STARBOARD - 47.313
Save time and effort
when assembling starboard LEDs
47.313.

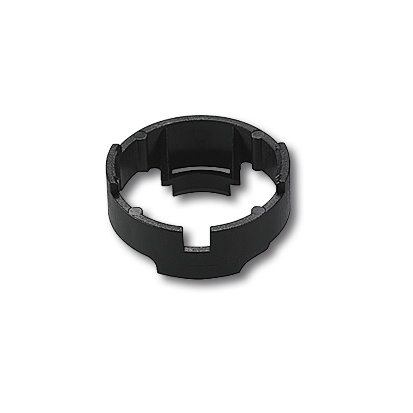

BJB connection elements for starboard boards for quick and easy assembly. The lens holder with lens is clipped into the connecting element, which is fastened to the printed circuit board with the help of two M3 screws.
And then there is the practical one-clip attachment for optic holders and optics. Compatible with LEDs from Osram, Signify, Lumileds, Seoul semiconductor, Edison and other vendors that can be placed on star boards.
Soldering was yesterday
BJB Starboard connectors
Important things at a glance.
- Screw fastening for screws M3
- Solder-free contacting of the LED
- no lifetime-reducing thermal load of the LEDs
- Straightforward replacement of the LED
- Easy adaption of optics
- Fixation of the LED
