THE INDIVIDUAL BJB CONNECTORS 47.315 - 47.318 - ALWAYS THE RIGHT CONNECTION
Connection elements for special COBs
47.315 - 47.318
Even more options in the LED environment.

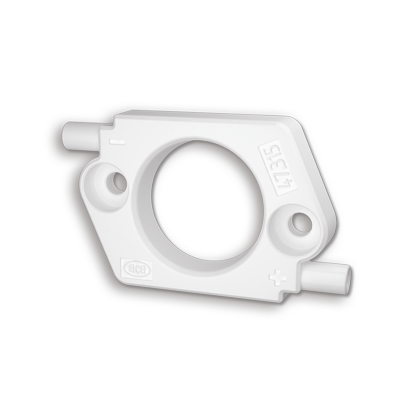

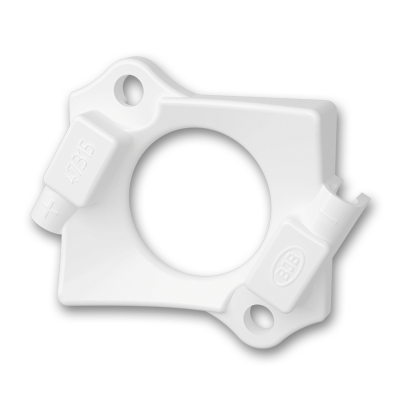

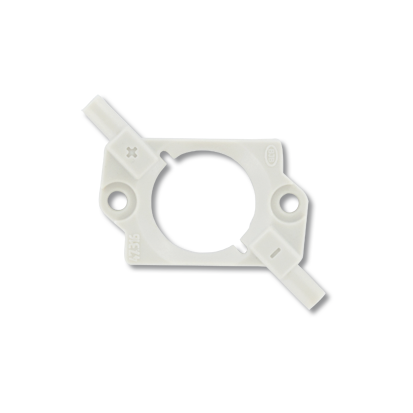

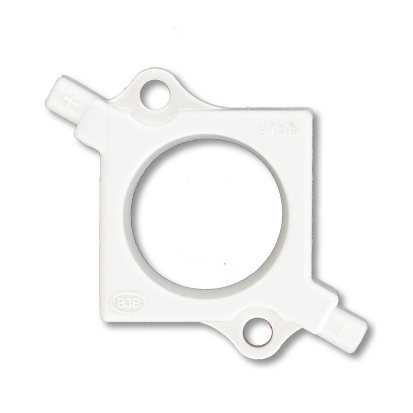

BJB offers special versions of connectors for special COBs. The 47. 315 series offers special COB connectors for Citizen CLL030 19 x 19 mm LED boards or for Citizen CLL040 28 x 28 mm LED boards.
The connector 47. 315. 4001 was developed for Sharp MegaZeni LED boards. Or connectors for Bridgelux RS LEDs - with or without reflector interface - in BJB-typical design, which allows easy replacement of the light source. The reflector interface geometries are free and can be used by any reflector manufacturer.

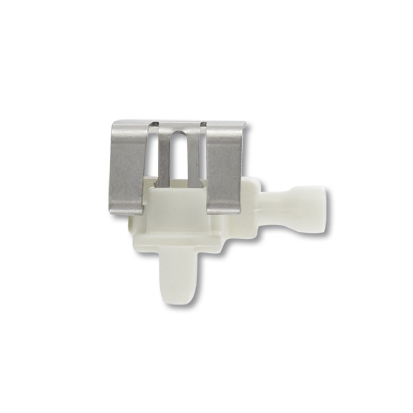

The 47. 318 series is a special LED PCB connector for locking into the panel. This connector consists of a housing with a standard wire connector and a metal spring construction that locks into the aperture of the luminaire housing without tools. The connector is suitable for the LED Citizen CLL104, which can be easily mounted with this connector, whereby a defined mounting pressure at the same time ensures heat dissipation.
Our standards
for the whole variety of light
Important things at a glance.
- Simple, safe and reliable assembly
- High-strength, blue-light resistant plastics
- Corrosion and wear resistant contact materials
- Resistant to fretting corrosion
- Free reflector geometry
