Connector 3 poles
Article number:
49.571.0313-0
EAN:
-
-
-
0,8 - 1,0
-
ø 3,4
-
-
Product information "Connector 3 poles"
Nominal cross section: 1.5 mm²
Fuse not supplied.
Plug and socket are not supplied assembled.
Fuse not supplied.
Plug and socket are not supplied assembled.
| Ausführung: | Connecting terminal |
|---|---|
| Color: | gray |
| Lettering: | N *0* L |
| Luminaire wall thickness: | 0.8 - 1.0 |
| Material: | Housing: PC (V2) |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 3 |
| Packaging quantity: | 500 |
| Plug/socket: | Plug and Socket |
| Producttype: | Connecting Terminals |
| Screw terminals: | ø 3.4 |
| Series: | Connectors and fused terminal blocks |
| Weight: | 36 g |
| mounting method 1: | Snap fixing |
| old article number: | 49.571.0313.81 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 49.571.0313-0 | Genehmigung_liegt_vor-Approval_at_hand4070828 | ||
| 49.571.0313-0 | Genehmigung_liegt_vor-Approval_at_hand719131 |
-
-
0,8 - 1,0
-
ø 3,4
-
-

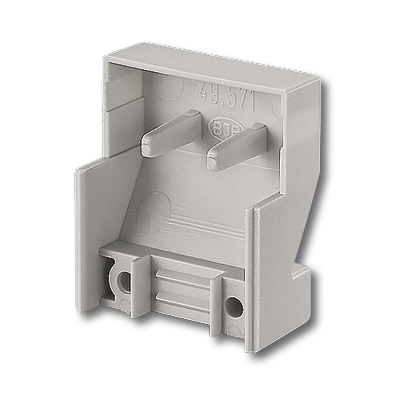

Accessories
